SKU: F-L14/30/830/D/HE2 • UPC: 751338019621

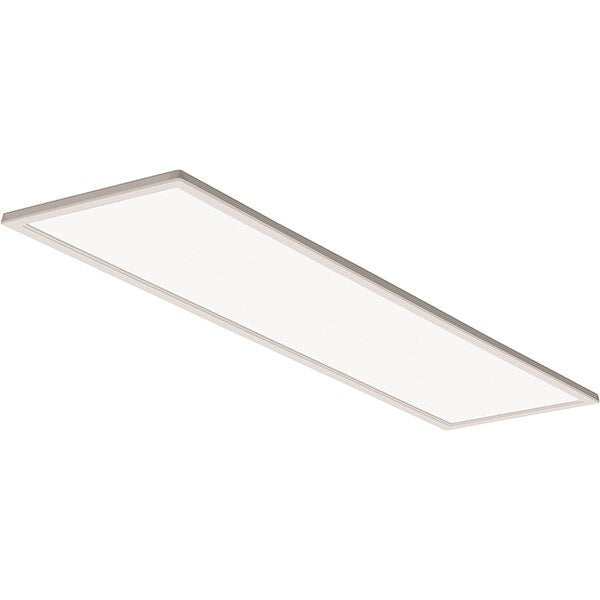

1x4 LED Back-Lit Panels, Multi-Wattage, Multi-Brightness, Color Tunable, Damp Rated, Pack of 2

1x4 LED Back-Lit Panels, Multi-Wattage, Multi-Brightness, Color Tunable, Damp Rated, Pack of 2

25/30/40W + 3125/3750/5000 Lumens + 3500K/4000K/5000K

Regular price $139.99
Regular price Sale price $139.99
Sale Sold out
Shopify secure badge
View full details
1 of 6

Description

LED EBPN14-40W103sw-2 thoughtfully designed for superior illumination, ultimate efficiency, and easy installation, this 1×4 LED panel offers a larger driver for more space when wiring and a sturdy concave-convex backplate for no light leakage. Double-sided welding provides a seamless, polished frame and PMMA material guarantees perfect light output without the risk of yellowing. This panel provides three wattage options, 25W/30W/40W on each unit, for a lumen output of either 3125lm/3750lm/5000lm, and offers three color temperature options: Soft White (3500K), Bright White (4000K), and Cool White (5000K). Its best suitable for commercial locations where quality lighting is needed including office buildings, retail spaces, schools, and health care facilities. This panel also features 0-10V dimming, 80 CRI, operates on a 120-277V line, and is available in a 2-pack.

  • Back lit design with superior light uniformity and color consistency
  • Standard 0-10 V dimming
  • Mitsubishi PMMA light guide eliminates premature yellowing
  • 50,000 rated life hours
  • Damp location rated
  • DLC 4.2 Listed

Downloads

Specifications

Brand Euri Lighting
MPN (Part No.) EBPN14-40W103SW-2
UPC 751338019621
Dimmable Yes
DLC Premium Listed Yes
Safety Rating UL Damp Location
CRI 80
Color 3500K / 4000K / 5000K
Wattage 25 / 30 / 40 Watt
Brightness 3125 / 3750 / 5000 Lumens
Life Hours 50,000 Hours
Beam Angle 100°
Voltage AC120-277V
Mounting Ceiling Grid Mount/Suspended
Length 47.6 Inches
Height 1.22 Inches
Depth 11.74 Inches
Warranty 5 Years
Case Quantity 2
