SKU: F-L14/30/850/D/HE2 • UPC: 751338019645

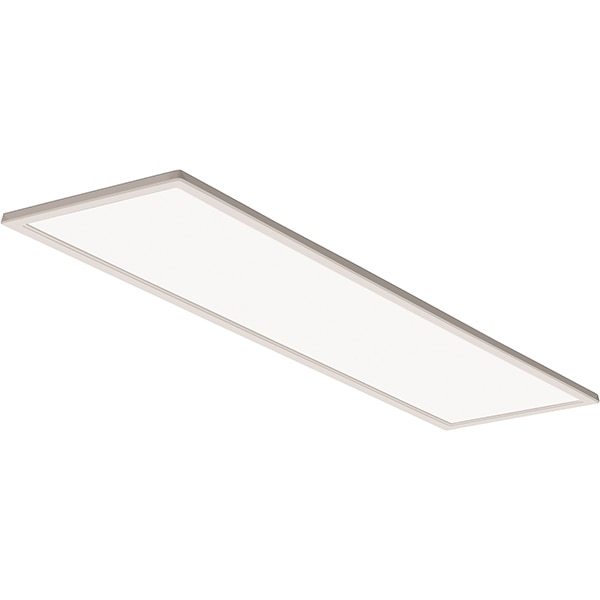

1x4 LED Panel - 30 Watt - 3750 Lumens - 5000K - Dimmable - 120-277V
1x4 LED Panel - 30 Watt - 3750 Lumens - 5000K - Dimmable - 120-277V

Product Highlights
Description
Topaz's F-L14/30/850/D/HE2 1 x 4 LED panel replaces fluorescent troffers and saves you 50% on your energy bill. These flat panels cast the right light in any residential or commercial settings. They are designed for drop in ceilings, pendant mount or surface mount applications. Standard 0-10V dimming capability allows greater energy-savings. This 1 x 4 LED light fixture provides a daylight ambiance with its 5000 kelvin color temperature.
- Edge lit design with superior light uniformity and color consistency
- Standard 0-10 V dimming
- White frame, fits standard T-bar drop ceilings
- Mitsubishi PMMA light guide eliminates premature yellowing
- IC rated for direct contact with insulation
- Damp location rated
- Includes 2 power quick connects
- DLC 4.2 Listed
Specifications
| Brand | Topaz Lighting |
| MPN (Part No.) | F-L14/30/850/D/HE2 |
| UPC | 751338019645 |
| Dimmable | Yes |
| DLC Listed | Yes |
| Safety Rating | UL Damp Location |
| CRI | 80 |
| Color Temperature | 5000K |
| Life Hours | 60,000 Hours |
| Wattage | 30 Watt |
| Lumens | 3750 |
| Voltage | 120/208/240/277 |
| Mounting | Ceiling Grid Mount/Suspended |
| Length | 47.9 Inches |
| Height | 1.8 Inches |
| Width | 11.9 Inches |
| Warranty | 5 Years |
| Case Quantity | 4 |
