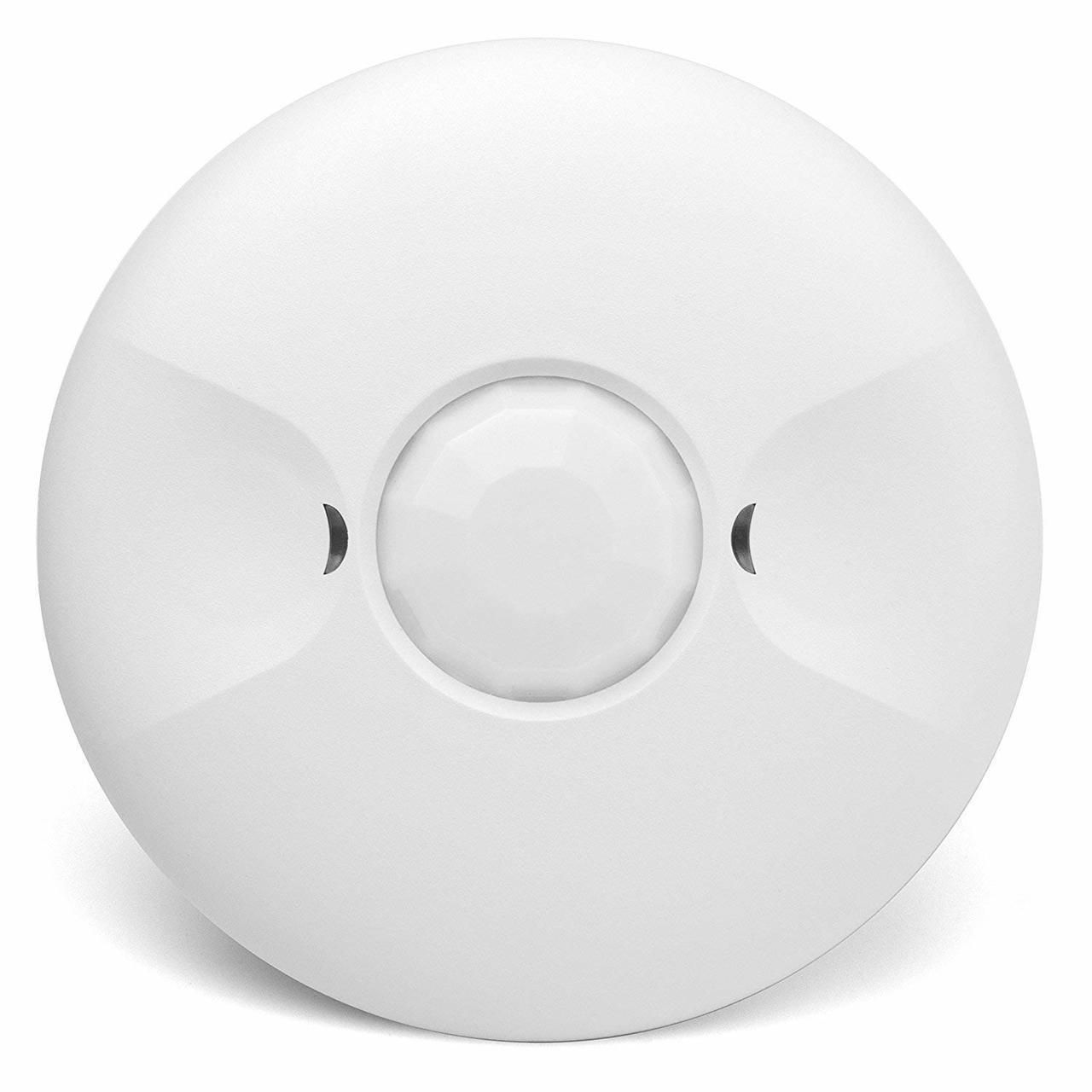

360 Deg. Occupancy Sensor - Ceiling Mount - Low Voltage
360 Deg. Occupancy Sensor - Ceiling Mount - Low Voltage
Product Highlights
Description
The MPC-50L 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light level. The light level feature keeps lights from turning on if ambient light level is sufficient. The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified or auto-set time (5 seconds to 30 minutes) the lights switch off. A "walk-through" mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds of an occupancy detection.
- Time Delay is adjustable from 5 seconds to 30 minutes
- Adjustable Light Level: 10FC-150FC
- Simple and fast installation
- Adjustable time delay
- Light level is adjustable
- Multi-level, 360° Fresnel lens for superior occupancy detection
Note: The MPC-50L operated on 24V supplied by MMP-24 power pack.
Specifications
Brand: | Enerlites |
MPN (Part No.): | MPC-50L-W |
UPC: | 883951412784 |
Safety Rating: | UL Indoor |
Color: | White |
CA Title 20: | Compliant |
Voltage: | 24V |
Amperage: | 9 mA |
Coverage: | 1,200 sq. ft. PIR |
Field of View | 360 Degrees |
Load Type: | CFL/Fluorescent/Incandescent/LED |
Motion Detection: | PIR (Passive Infrared) |
Motion Sensor Type | Occupancy |
Sold Separately: | MMP-24Power Pack |
Time Delay: | 5 sec. to 30 min. |
Height: | 1.2 Inches |
Diameter: | 4.5 Inches |
Warranty: | 2 Years |
Case Quantity: | 10 |
