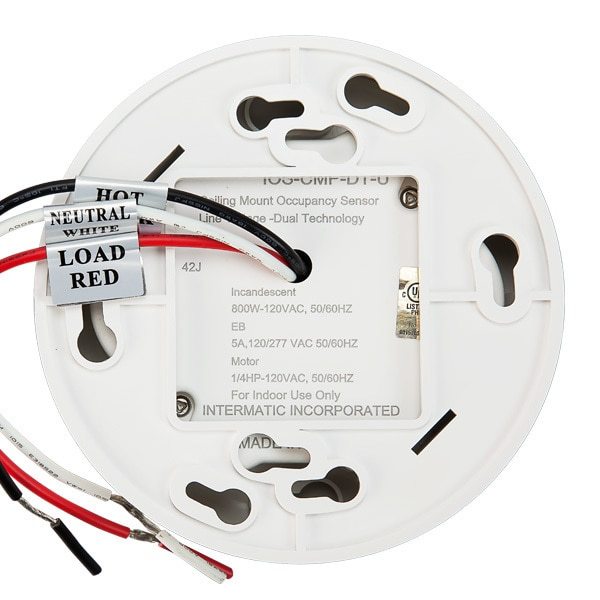

360 Deg. Wireless Occupancy Sensor - Ceiling Mount

360 Deg. Wireless Occupancy Sensor - Ceiling Mount

Regular price $98.23
Regular price Sale price $98.23
Sale Sold out
Shopify secure badge
View full details
1 of 6

For use with Intermatic Wireless Controls - 1600 sq. ft. Coverage - 120/277 Volt - Intermatic IOS-CMP-DT-U

Using a combination of passive infrared (PIR) and ultrasonic technologies, this Intermatic IOS-CMP-DT-U line voltage occupancy sensor will prompt the lights to automatically turn on while a room is occupied and turns the lights off when movement has ceased. This ceiling-mounted sensor is ideal for bathrooms, offices, storage rooms, and waiting rooms that have constant in and out traffic.

  • Passive infrared (PIR) technology detects the difference between emitted heat from a human body and background space
  • Ultrasonic technology detects occupants by transmitting sound waves and measuring the speed in which they return
  • 360-degree coverage pattern, up to 1600 sq. ft. for PIR sensing and 1000 sq. ft. for the ultrasonic sensing
  • Zero crossing circuitry, increases sensor life
  • Neutral connection required
  • Adjustable time delay


Brand: Intermatic
MPN (Part No.): IOS-CMP-DT-U
UPC: 883951412760
Safety Rating: UL Indoor
Color: White
CA Title 20: Compliant
Voltage: 120/277
Amperage: 20 mA
Coverage: 1,600 sq. ft. PIR/1000 sq. ft. Ultrasonic
Field of View: 360 Degrees
Load Type: CFL/Fluorescent/Incandescent/LED
Motion Detection: PIR (Passive Infrared)/Ultrasonic
Motion Sensor Type: Occupancy
Sold Separately: IOS-PP24 Power Pack
Time Delay: 5 sec. to 30 min.
Height: 1.38 Inches
Diameter: 4.53 Inches
Warranty: 2 Years
Case Quantity: 10
