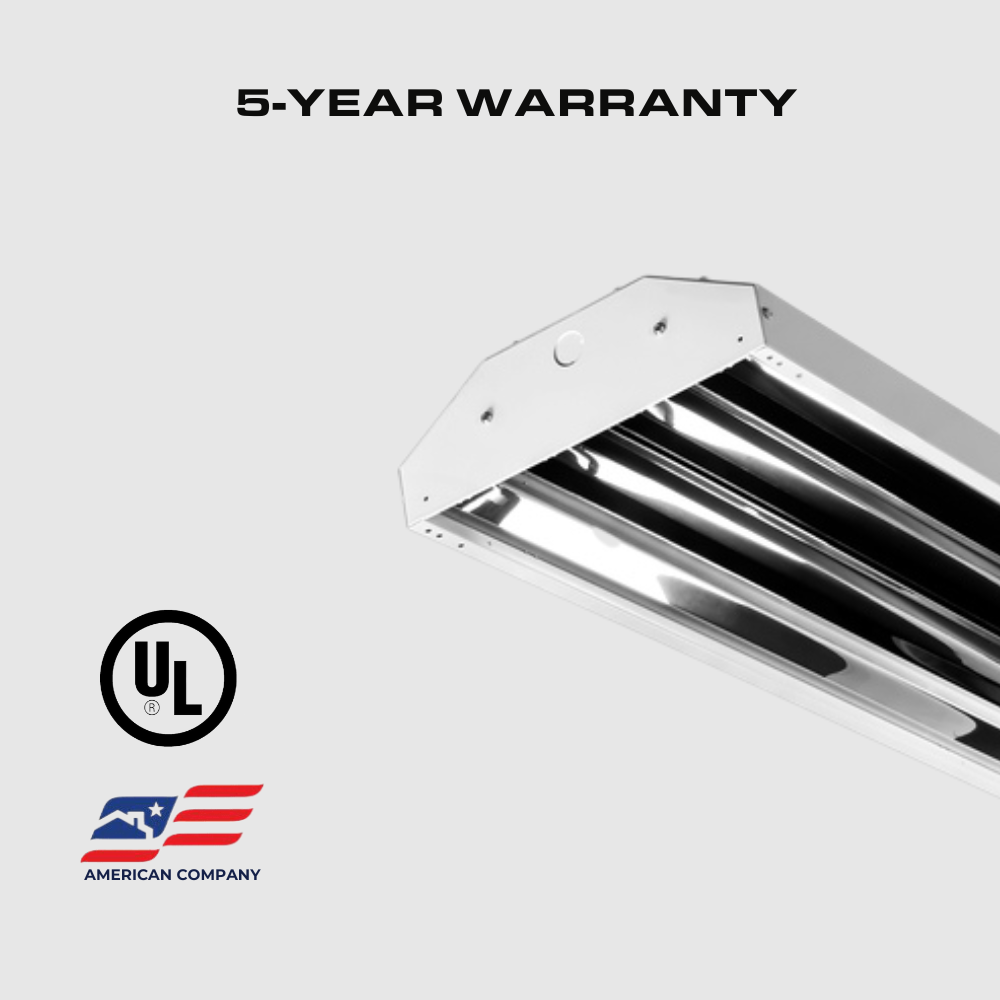

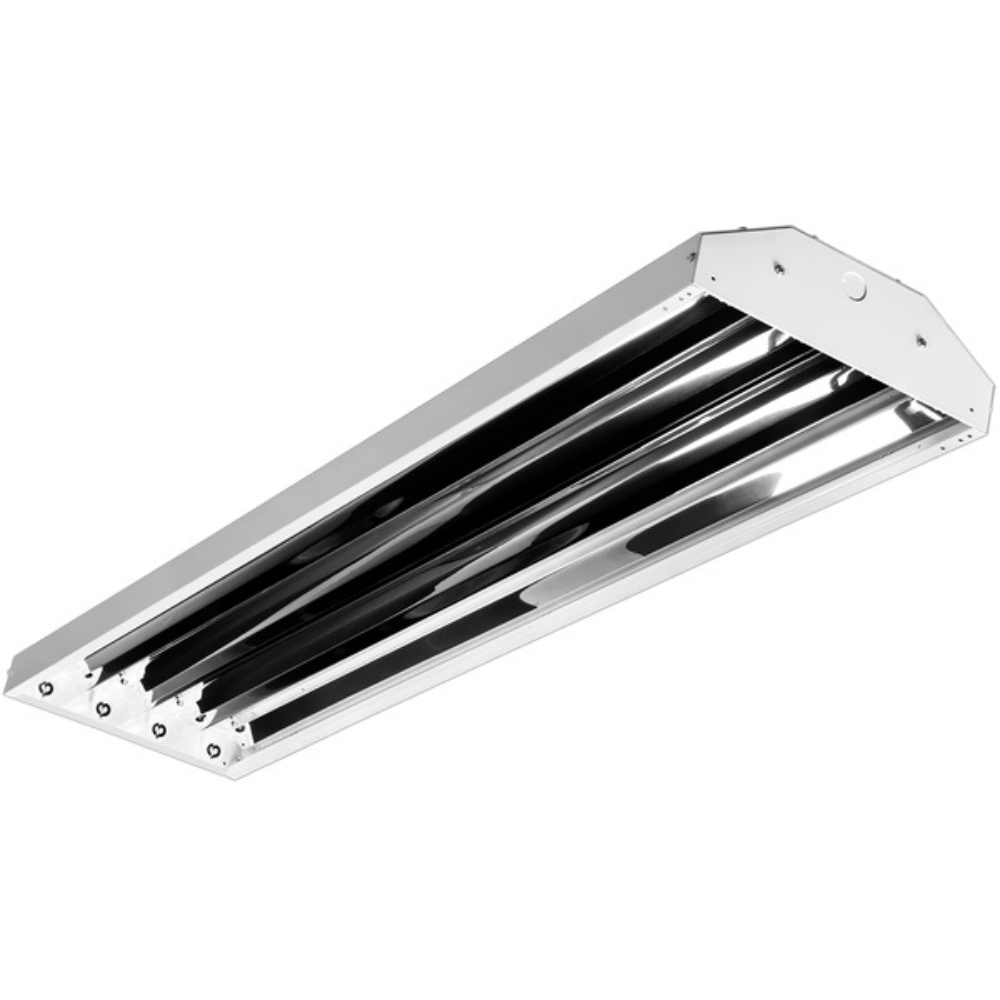

LED Ready High Bay, 4 Lamp, T8

Description

The MaxLite T8 LED Lamp Ready linear Highbay provides distributors, contractors, and buyers with a UL listed fixtures designed specifically for LED T8 lamps. These Linear Highbay are constructed of the same durable materials as our Commercial Industrial grade fluorescent and LED PCB versions. These fixtures support competitive light output when used with MaxLite brand T8 LED Single/Double ended lamps. These fixtures are verified for use in Highbay, Lowbay, assembly, warehouse, and other general lighting applications

Single ended or Dual mode (Single/Double ended) T8 internal driver lamps (4’) under 17W must be purchased separately for this product.

• Operates (4) direct wire LED T8 tubes only (not included)
• Tubes must be powered on one end only

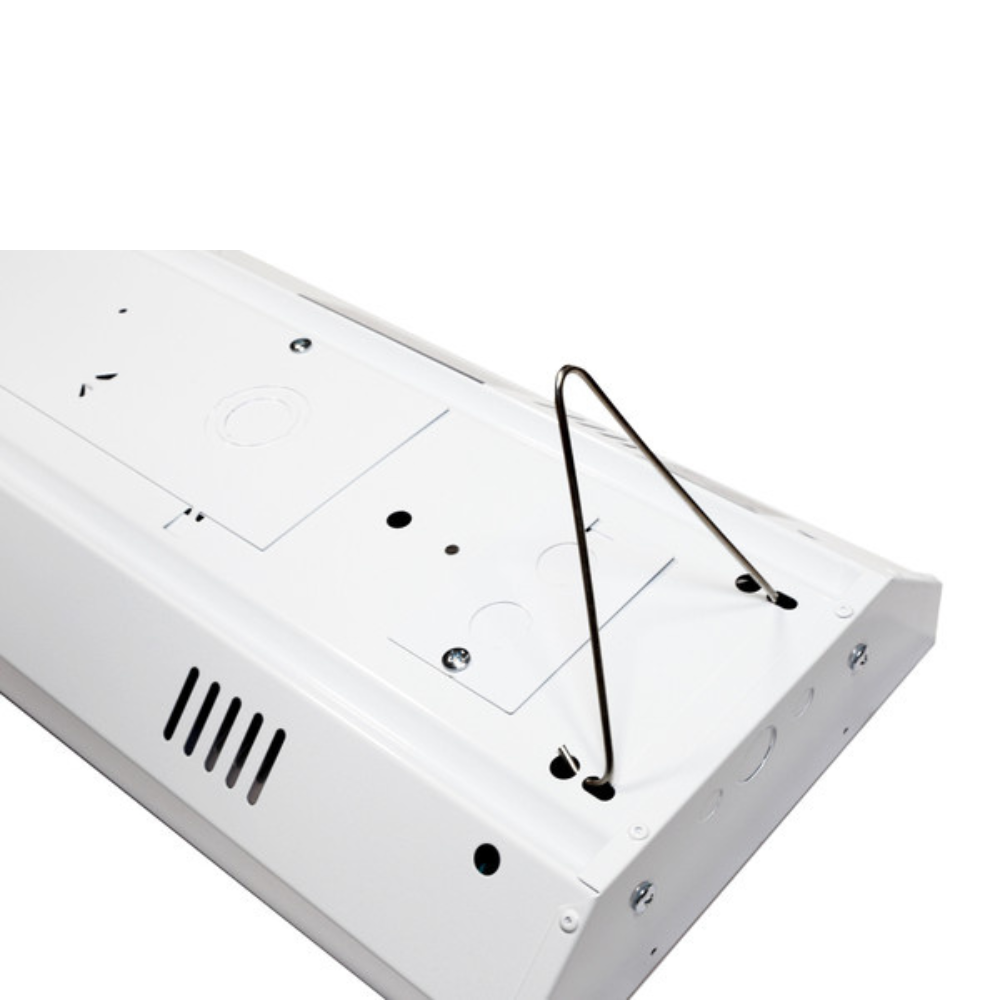

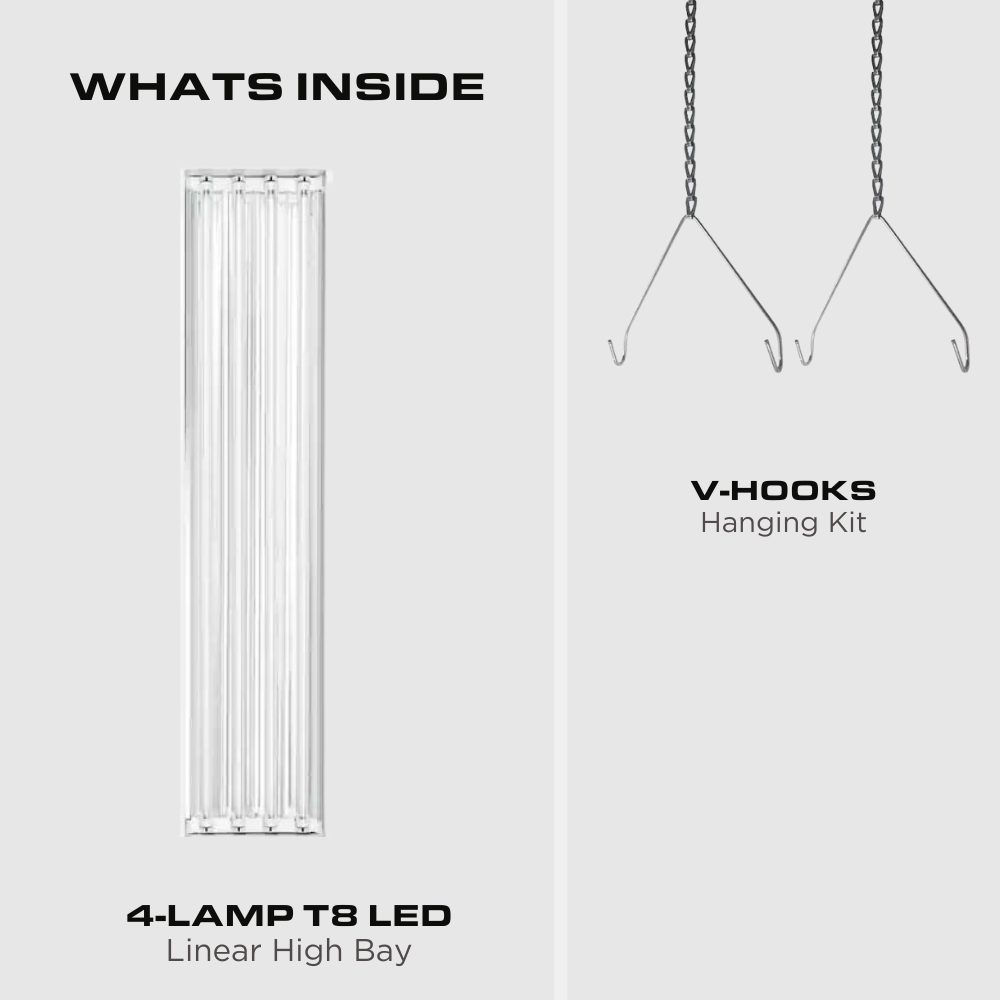

• Pendant or chain mount with adjustable cable
• LED ready with non-shunted sockets
• Use in commercial applications
• Heavy duty steel construction
• No ballast drama

Downloads

Maxlite BLHT4XT8USE4810 Spec. Sheet

Maxlite BLHT4XT8USE4810 Owner's Manual

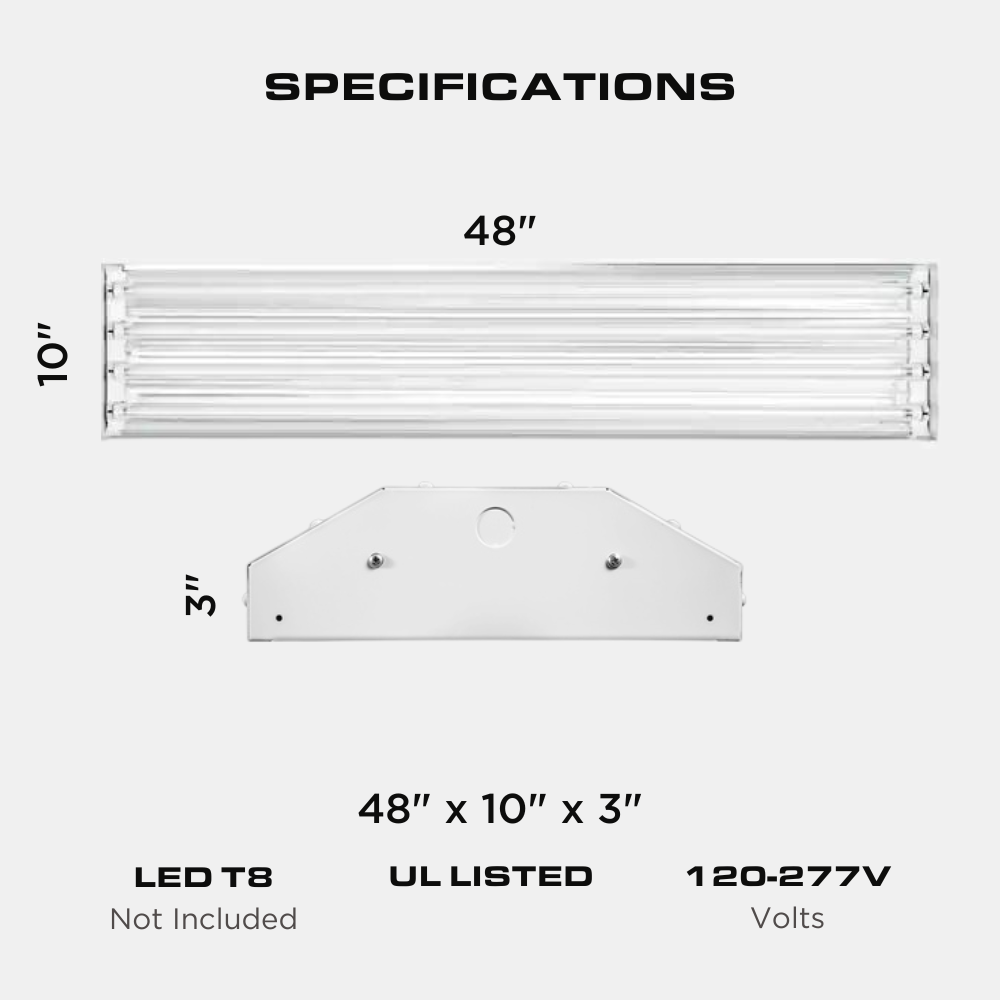

Specifications

Brand	Maxlite
MPN (Part No.)	BLHT4XT8USE4810
UPC	767627951442
Safety Rating	UL
Number of Lamps	4 (Not Included)
Bulb Shape	T8
Bulb Type	LED T8 Internal Driver

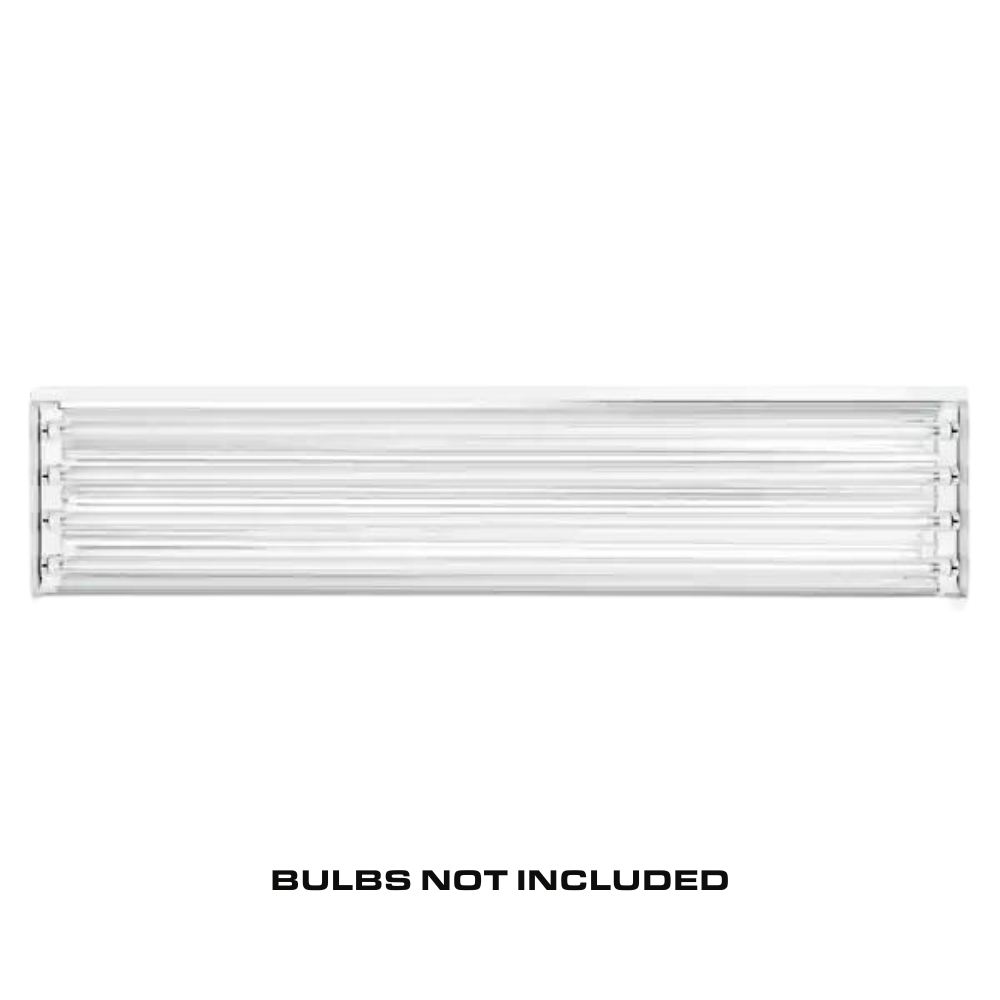

Bulbs Included	No
Ballast Included	No
Reflector Type	Aluminum
Length	48 Inches
Height	3.08 Inches
Width	10.08 Inches
Warranty	5 Years
