SKU: MPC-50H-W • UPC:

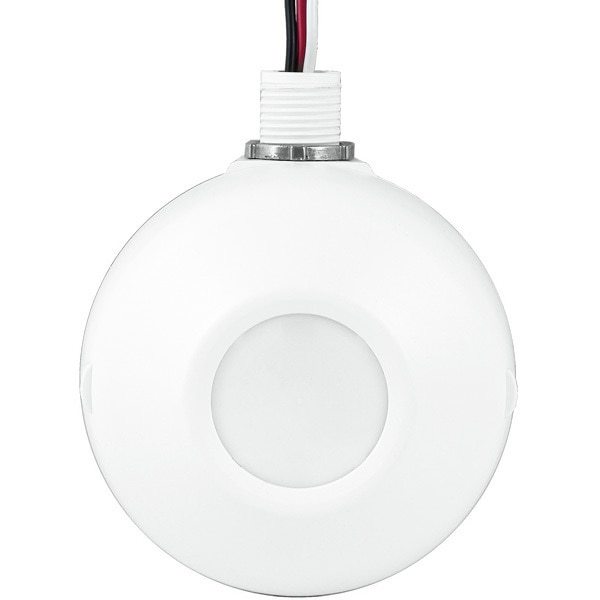

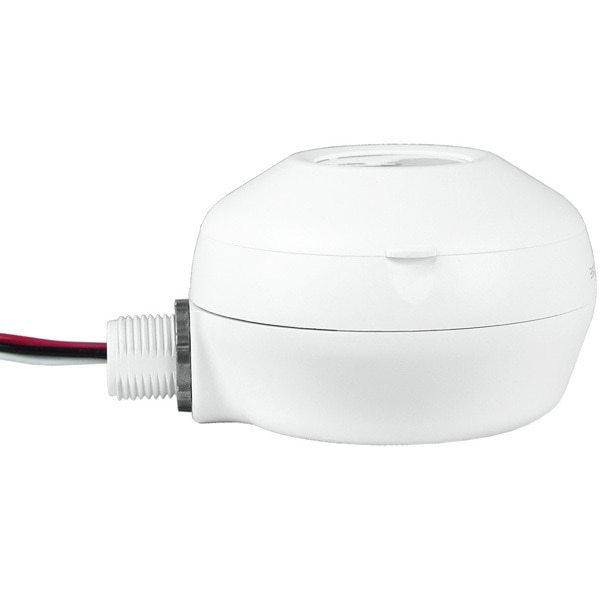

High Bay LED Occupancy Sensor, Passive Infrared (PIR), 800 Watt Max., Neutral Required, 120/277V
High Bay LED Occupancy Sensor, Passive Infrared (PIR), 800 Watt Max., Neutral Required, 120/277V
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Couldn't load pickup availability
Product Highlights
High Bay LED Occupancy Sensor, Passive Infrared (PIR), 800 Watt Max., Neutral Required, 120/277V
With passive infrared technology, this high bay occupancy sensor will prompt lights to automatically turn on and remain on while a room is occupied.
- Mount at a height of 8 - 50 ft. to cover an area of 1200 - 2,800 sq ft.
- Controls incandescent, CFL, and LED lighting
- Time delay ranges from 15 sec. to 30 min.
- Compatible with any program-start ballast
- Secured neutral wiring required
Downloads
Specifications
| Connection: | Neutral Wire Required |
| Maximum Wattage: | 800 Watt |
| Time Delay: | 15 sec. to 30 min. |
| Voltage: | 120/277V |
| Field of View: | 360 Deg. |
| Motion Detection: | PIR (Passive Infrared) |
| Motion Sensor Type: | Occupancy |
| Load Type: | Fluorescent/HID.LED |
| Coverage: | 2,800 Sq. Ft. |
Ordering Information
| Brand: | Enerlites |
| MPN (Part No.): | MPC-50H-W |
| UPC: | 883951413996 |
| Case Quantity: | 10 |
Certifications / Warranty
| Certifications/Listings: | Title 24/UL Indoor |
| Manufacturer Warranty: | 2 Year |
Dimensions
| Width: | 3.50 Inches |
